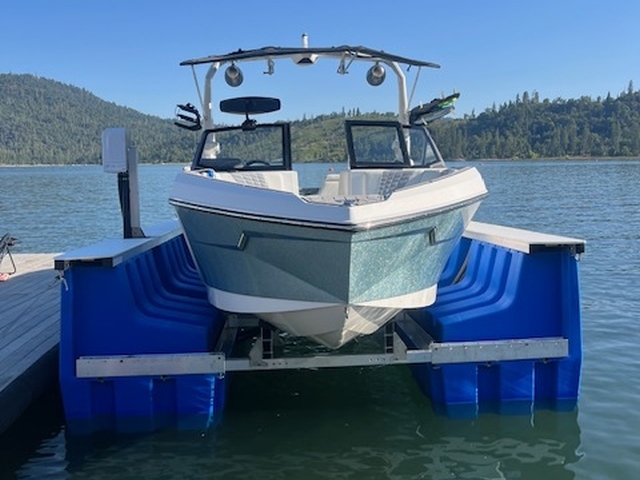

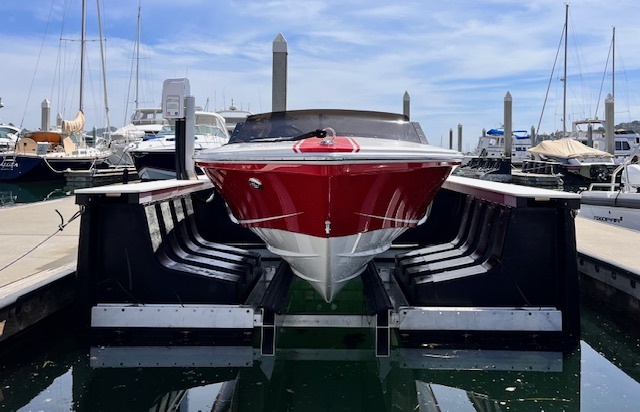

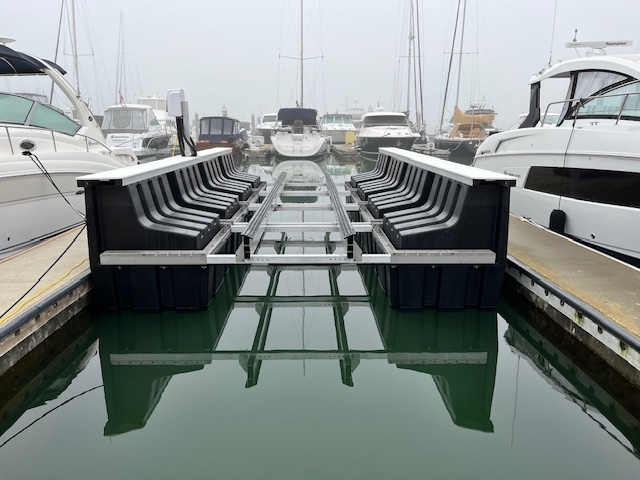

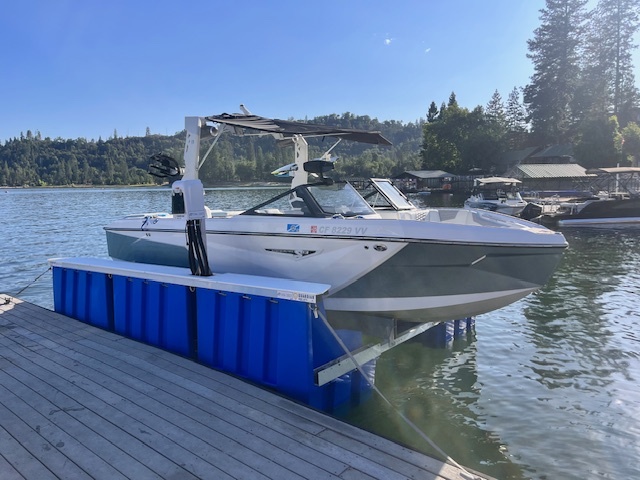

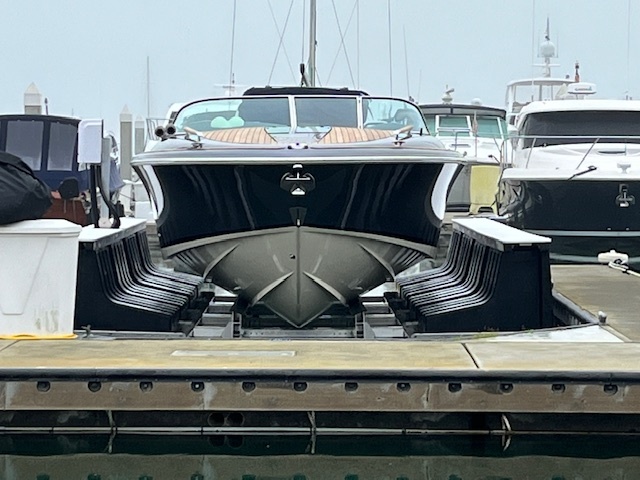

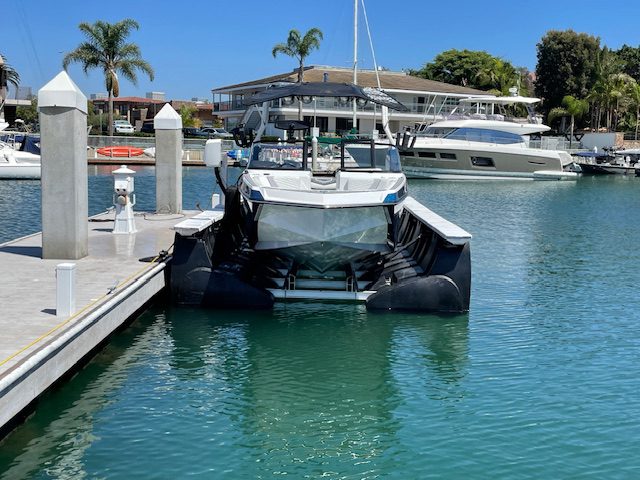

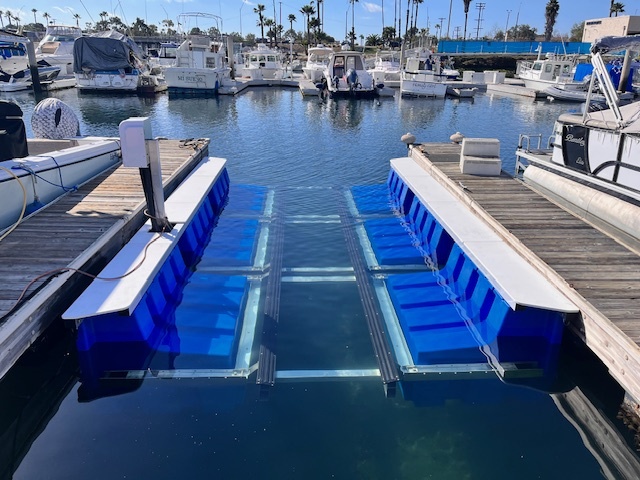

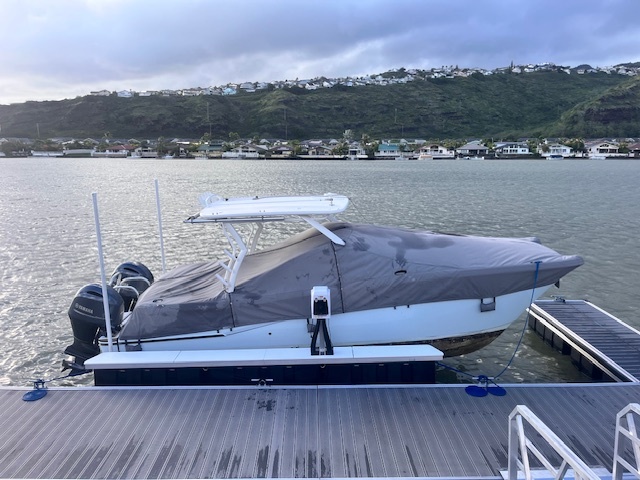

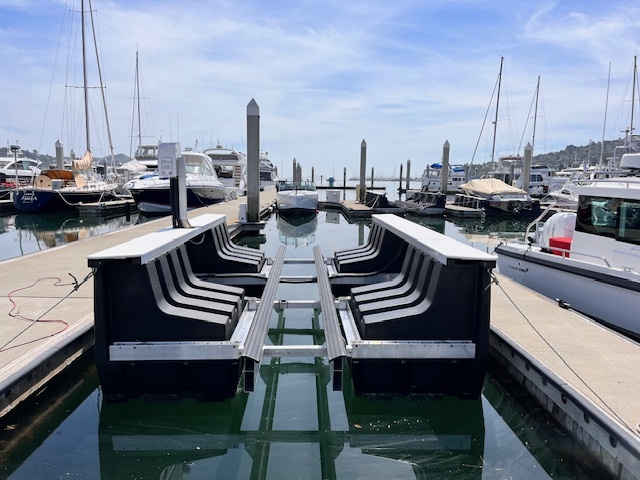

This Free-Floating Boat Lift is a “level-lifting” structure constructed primarily with marine grade polyethylene tanks, aluminum frame, and stainless steel hardware.

The most versatile boat lift — designed for salt, brackish or freshwater.

Compatible with fixed or floating docks, and works in a U-shaped slip, double-wide slip, L-shaped Finger Pier dock, and square dock. The hull supports can be configured for nearly all boat styles, including inboard, wake, pontoon, and tritoon boats. The unit can simply be tied to the dock or use a conventional mooring system.

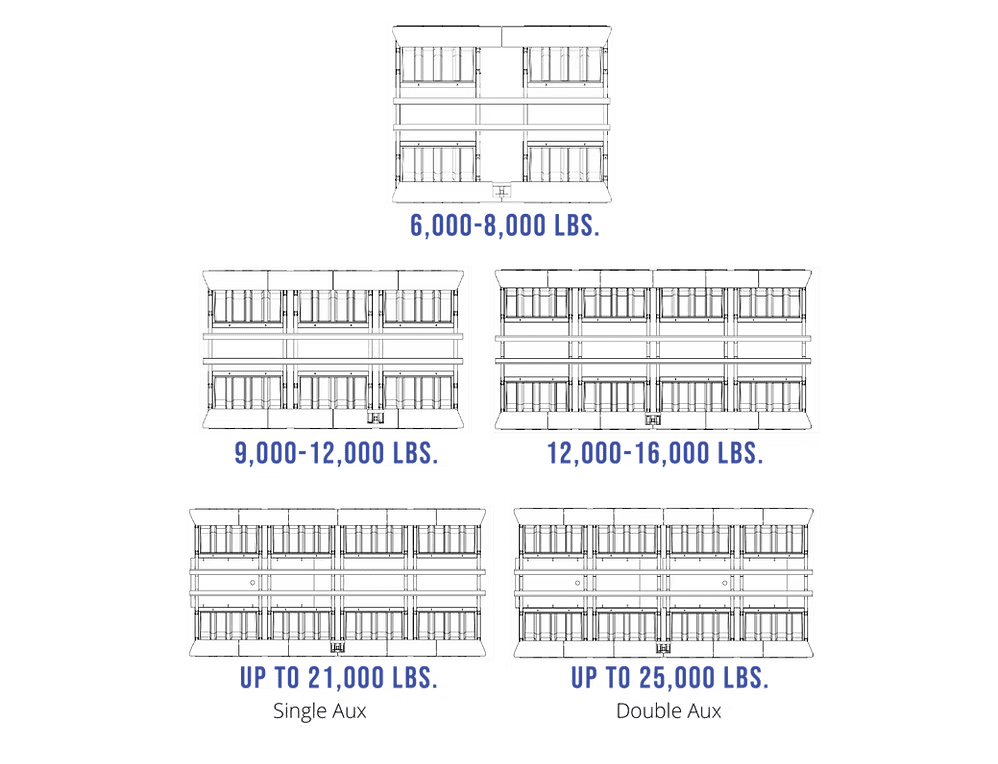

6,000-8,000 LBS.

9,000-12,000 LBS.

12,000-16,000 LBS.

Up to 21,0000 LBS.

Single Aux

Up to 25,0000 LBS.

Double Aux

Model: 6000-420

Capacity: 6000 lbs / 2722 kg
Tanks: 4
Length: 14′ / 4.27m
Outside Width: 10′ / 3.05m
Inside Width: 7’4″ / 2.24m
Bunk Rails:2 – 2.75″ x 8″ x 14′ Aluminum
Water Depth: 23″ / 0.58m + Draft
Outside Width: 11′ / 3.35m
Inside Width: 8’4″ / 2.54m
Bunk Rails:2 – 2.75″ x 8″ x 14′ Aluminum
Water Depth: 23″ / 0.58m + Draft
Outside Width: 12′ / 3.66m
Inside Width: 9’4″ / 2.84m
Bunk Rails:2 – 2.75″ x 8″ x 14′ Aluminum
Water Depth: 23″ / 0.58m + Draft

Model: 8000-427

Capacity: 8000 lbs / 3629 kg
Tanks: 4
Length: 18′ / 5.49m
Outside Width: 10′ / 3.05m
Inside Width: 7’4″ / 2.24m
Bunk Rails:2 – 2.75″ x 8″ x 18′ Aluminum
Water Depth: 30″ / 0.76m + Draft
Outside Width: 11′ / 3.35m
Inside Width: 8’4″ / 2.54m
Bunk Rails:2 – 2.75″ x 8″ x 18′ Aluminum
Water Depth: 30″ / 0.76m + Draft
Outside Width: 12′ / 3.66m
Inside Width: 9’4″ / 2.84m
Bunk Rails:2 – 2.75″ x 8″ x 18′ Aluminum
Water Depth: 30″ / 0.76m + Draft

Model: 9000-620

Capacity: 9000 lbs / 4082 kg
Tanks: 6
Length: 18′ / 5.49m
Outside Width: 11′ / 3.35m
Inside Width: 8’4″ / 2.54m
Bunk Rails:2 – 2.75″ x 8″ x 18′ Aluminum
Water Depth: 23″ / 0.58m + Draft
Outside Width: 12′ / 3.66m
Inside Width: 9’4″ / 2.84m
Bunk Rails:2 – 2.75″ x 8″ x 18′ Aluminum
Water Depth: 23″ / 0.58m + Draft
Outside Width: 13′ / 3.96m
Inside Width: 10’4″ / 3.15m
Bunk Rails:2 – 2.75″ x 8″ x 18′ Aluminum
Water Depth: 23″ / 0.58m + Draft
Outside Width: 14′ / 4.27m
Inside Width: 11’4″ / 3.45m
Bunk Rails:2 – 2.75″ x 8″ x 18′ Aluminum
Water Depth: 23″ / 0.58m + Draft

Model: 12000-627

Capacity: 12000 lbs / 5443 kg
Tanks: 6
Length: 18′ / 5.49m
Outside Width: 11′ / 3.35m
Inside Width: 8’4″ / 2.54m
Bunk Rails:2 – 2.75″ x 8″ x 18′ Aluminum
Water Depth: 30″ / 0.58m + Draft
Outside Width: 12′ / 3.66m
Inside Width: 9’4″ / 2.84m
Bunk Rails:2 – 2.75″ x 8″ x 18′ Aluminum
Water Depth: 30″ / 0.58m + Draft
Outside Width: 13′ / 3.96m
Inside Width: 10’4″ / 3.15m
Bunk Rails:2 – 2.75″ x 8″ x 18′ Aluminum
Water Depth: 30″ / 0.58m + Draft
Outside Width: 14′ / 4.27m
Inside Width: 11’4″ / 3.45m
Bunk Rails:2 – 2.75″ x 8″ x 18′ Aluminum
Water Depth: 30″ / 0.58m + Draft

Model: 12000-820

Capacity: 12000 lbs / 5443 kg
Tanks: 8
Length: 24′ / 7.32m
Outside Width: 11′ / 3.35m
Inside Width: 8’4″ / 2.54m
Bunk Rails:2 – 2.75″ x 8″ x 14′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 23″ / 0.58m + Draft
Outside Width: 12′ / 3.66m
Inside Width: 9’4″ / 2.84m
Bunk Rails:2 – 2.75″ x 8″ x 14′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 23″ / 0.58m + Draft
Outside Width: 13′ / 3.96m
Inside Width: 10’4″ / 3.15m
Bunk Rails:2 – 2.75″ x 8″ x 14′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 23″ / 0.58m + Draft
Outside Width: 14′ / 4.27m
Inside Width: 11’4″ / 3.45m
Bunk Rails:2 – 2.75″ x 8″ x 14′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 23″ / 0.58m + Draft
Outside Width: 15′ / 4.57m
Inside Width: 12’4″ / 3.76m
Bunk Rails:2 – 2.75″ x 8″ x 14′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 23″ / 0.58m + Draft
Outside Width: 16′ / 4.88m
Inside Width: 13’4″ / 4.06m
Bunk Rails:2 – 2.75″ x 8″ x 14′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 23″ / 0.58m + Draft

Model: 16000-827

Capacity: 16000 lbs / 7257 kg
(Up to 25,000 lbs./9525 kg)
Tanks: 8
Length: 24′ / 7.32m
Outside Width: 11′ / 3.35m
Inside Width: 8’4″ / 2.54m
Bunk Rails:2 – 2.75″ x 8″ x 14′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 30″ / 0.76m + Draft
Outside Width: 12′ / 3.66m
Inside Width: 9’4″ / 2.84m
Bunk Rails:2 – 2.75″ x 8″ x 14′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 30″ / 0.76m + Draft
Outside Width: 13′ / 3.96m
Inside Width: 10’4″ / 3.15m
Bunk Rails:2 – 2.75″ x 8″ x 14′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 30″ / 0.76m + Draft
Outside Width: 14′ / 4.27m
Inside Width: 11’4″ / 3.45m
Bunk Rails:2 – 2.75″ x 8″ x 14′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 30″ / 0.76m + Draft
Outside Width: 15′ / 4.57m
Inside Width: 12’4″ / 3.76m
Bunk Rails:2 – 2.75″ x 8″ x 14′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 30″ / 0.76m + Draft
Outside Width: 16′ / 4.88m
Inside Width: 13’4″ / 4.06m
Bunk Rails:2 – 2.75″ x 8″ x 14′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 30″ / 0.76m + Draft

Model: 20000-1027

Capacity: 20000 lbs / 9072 kg
(Up to 25,000+ lbs./11340 kg)
Call for Details
Tanks: 10
Length: 30′ / 9.14m
Outside Width: 11′ / 3.35m
Inside Width: 8’4″ / 2.54m
Bunk Rails:2 – 2.75″ x 8″ x 20′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 30″ / 0.76m + Draft
Outside Width: 12′ / 3.66m
Inside Width: 9’4″ / 2.84m
Bunk Rails:2 – 2.75″ x 8″ x 20′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 30″ / 0.76m + Draft
Outside Width: 13′ / 3.96m
Inside Width: 10’4″ / 3.15m
Bunk Rails:2 – 2.75″ x 8″ x 20′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 30″ / 0.76m + Draft
Outside Width: 14′ / 4.27m
Inside Width: 11’4″ / 3.45m
Bunk Rails:2 – 2.75″ x 8″ x 20′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 30″ / 0.76m + Draft
Outside Width: 15′ / 4.57m
Inside Width: 12’4″ / 3.76m
Bunk Rails:2 – 2.75″ x 8″ x 20′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 30″ / 0.76m + Draft
Outside Width: 16′ / 4.88m
Inside Width: 13’4″ / 4.06m
Bunk Rails:2 – 2.75″ x 8″ x 20′ Aluminum 2 – 2.75″ x 8″ x 10′ Aluminum
Water Depth: 30″ / 0.76m + Draft
Standard Features
  • Most versatile, free-floating lift
  • Rugged, marine-grade polyethylene tanks
  • Continuous walkways full length of the lift for safety and easy access
  • Aluminum structure to extend the life of the product
  • Push button control mounted directly on the lift
  • Level-lifting operation
  • Quick lift and launch operation
  • Adjustable hull pads
  • Easy loading and unloading of passengers
